LED車載顯示屏

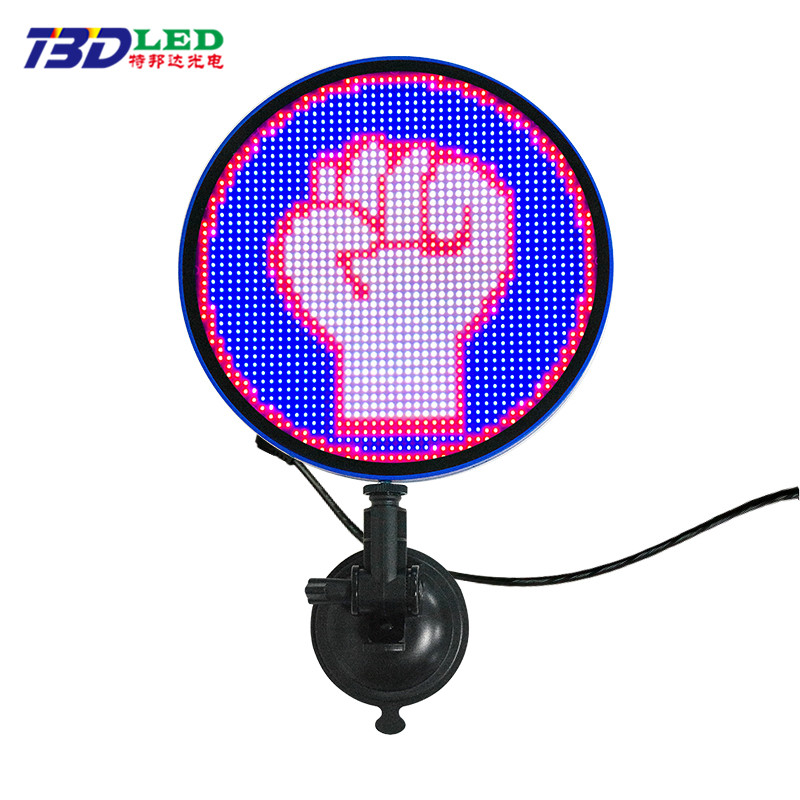

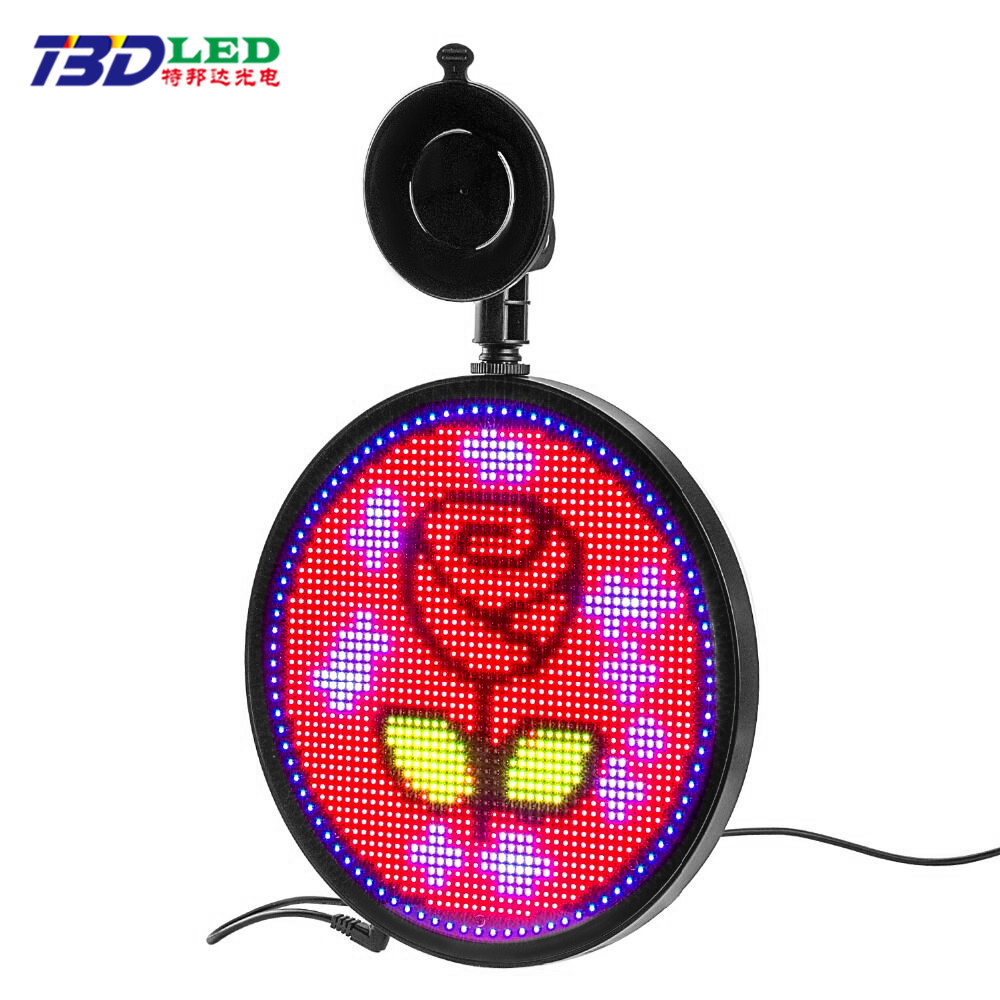

  • LED圓形車載司機表情燈
  • LED圓形車載司機表情燈
產品規格
Specification
Setting Information
Model No.
WF220RGB
Size
diameter 225mm
pixel
64*64 dots for circular
pitch
4.0 mm
color
full color 2121RGB
box size
25*25*7.5 cm
packing size
78*52*52cm  40pcs/carton 50kg
Power
18W
Product Description

Product Details

1 Pixel composition 1R1G1B LED (SMD2121)
2 Pixel pitch 4.0mm
3 size Diameter 225mm
4 Module resolution 64X64
5LED chip Sanan
6 LED package form Kinglight
7 Display density 64*64 dots for circular
8 Maximum white balance brightness 2000-2500 cd/㎡

9 Gray level : Red, green, and blue ≥ 256 levels, up to 65536 levels
11 Out of control point : ≤1/10000
12 Optimal viewing distance: ≥4M
13 Viewing angle: Level: ≥120°Vertical≥120°
14 Device driver: 1/16 Scan
15 Change frame frequency: ≥60Hz
16 Refresh rate: ≥1920Hz
17 Control method: WIFI or Remote from TBDLED


18 Waterproof grades and materials: IP55
19 Lifetimeh: ≥100,000 hours.
20 Operating Voltage: AC 220V±15%,50Hz±2 Hz or DC5V or DC12V
21 Environmental temperature and humidity : Temperature:-20℃~+60℃,Humidity:10%-95%
22 Power consumption (maximum/average): 18W/Pcs

23 Smoothness: Adjacent image between ≤ 0.5mm; module splicing gap ≤ 0.5mm

24 Packing size: 250*250*7.5cm

25 Screen weight: 1.25kg/Pcs

26 Carton size: 78*52*52cm 40pcs/carton 50kg/carton
