LED海報鏡子屏
LED display P2.5 Indoor Poster
|
Led Module Parameter list |
||||
|
Model |
Resolution/module |
Resolutions/Pcs |
Led module size |
System |
|
P2.5 Kinglight |
108×81 |
157464 |
280mm×210mm |
Novastar T1&T6 |
Poster screen area size：0.57mX1.897m=1.08m2 Poster resolution：W216X H729=157464dots
|
NO. |
Led material |
Specification model |
PCS |
Price /Novastar T6 |
|
1 |
Led module |
SMD2020 |
18 |
2000USD/PCS |
|
2 |
Power supply |
200-300W |
2 |
|
|
3 |
Sending Cards |
T6 |
1 |
|
|
4 |
Receving cards |
Nava- star |
4 |
|
|
5 |
Cabinet Size |
570mm*1897mm |
1 |
|
|
6 |
Flightcase |
203*70*21cm |
1 |
LED display P2.5 Indoor Poster Technical Parameters
|
Number |
Project |
Technical Parameters |
|
1 |
Pixel composition |
1R1G1BLED （SMD2020） |
|
2 |
Pixel pitch |
2.5mm |
|
3 |
Module size |
280mm*210mm |
|
4 |
Module resolution |
108X81 |
|
5 |
LED chip |
Sanan |
|
6 |
LED package form |
Kinglight Package |
|
7 |
Display density |
157464dots/pcs |
|
8 |
Maximum white balance brightness |
≥1000 cd/㎡ |
|
9 |
Gray level |
Red, green, and blue ≥ 256 levels |
|
10 |
Display color |
≥16.7M species, up to 281 trillion species |
|
11 |
Out of control points |
≤1/10000 |
|
12 |
Best view distance |
≥2.5 m |
|
13 |
Viewing angle |
Level: ≥120°Vertical≥120° |
|
14 |
Device driver |
1/27 Scan |
|
15 |
Brightness adjust method |
256 grads software adjustments, 16 grads automatic adjustments |
|
16 |
Change frame frequency |
≥60Hz |
|
17 |
Refresh rate |
≥3840Hz |
|
18 |
Control method |
Novastar asynchronous |
|
19 |
Longevity |
≥100,000 hours. |
|
20 |
Continuous working time |
＞72 hours |
|
21 |
MTBF |
＞1,000 hours |
|
22 |
Operating Voltage |
AC 220V±15%，50Hz±2 Hz |
|
23 |
Environmental temperature and humidity |
Temperature：-20℃～+60℃，Humidity：10%-95% |
|
24 |
Power consumption (maximum/average) |
300W/Pcs |
|
25 |
Smoothness |
Adjacent image between ≤ 0.5mm; module splicing gap ≤ 0.5mm |
|
26 |
Maintenance method |
back-maintenance |
|
27 |
Screen weight |
≤26Kg/Pcs |
|
28 |
Uniformity |
Pixel light intensity, uniform module, single point correction per pixel |
|
29 |
Switching power supply |
5V/60A/40A |
|
30 |
Control System |
Wired, Novastar T1 ,Novastar T6 |

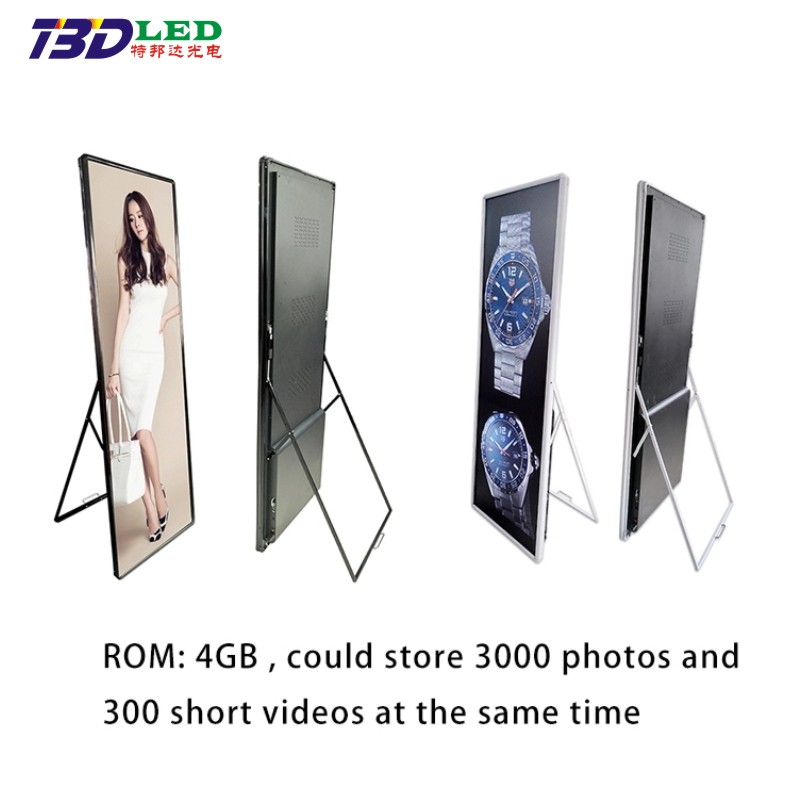

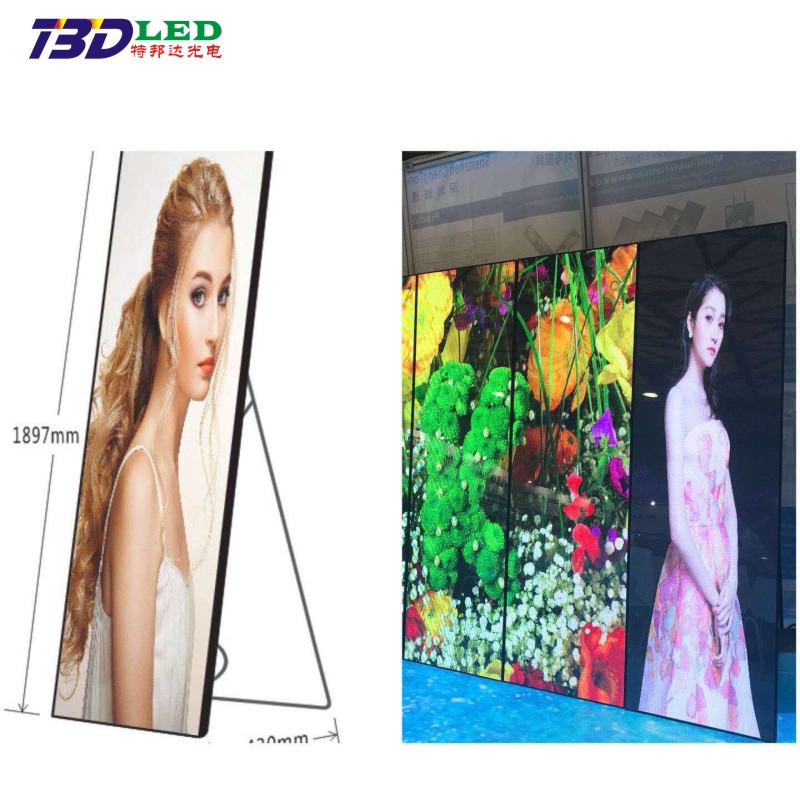

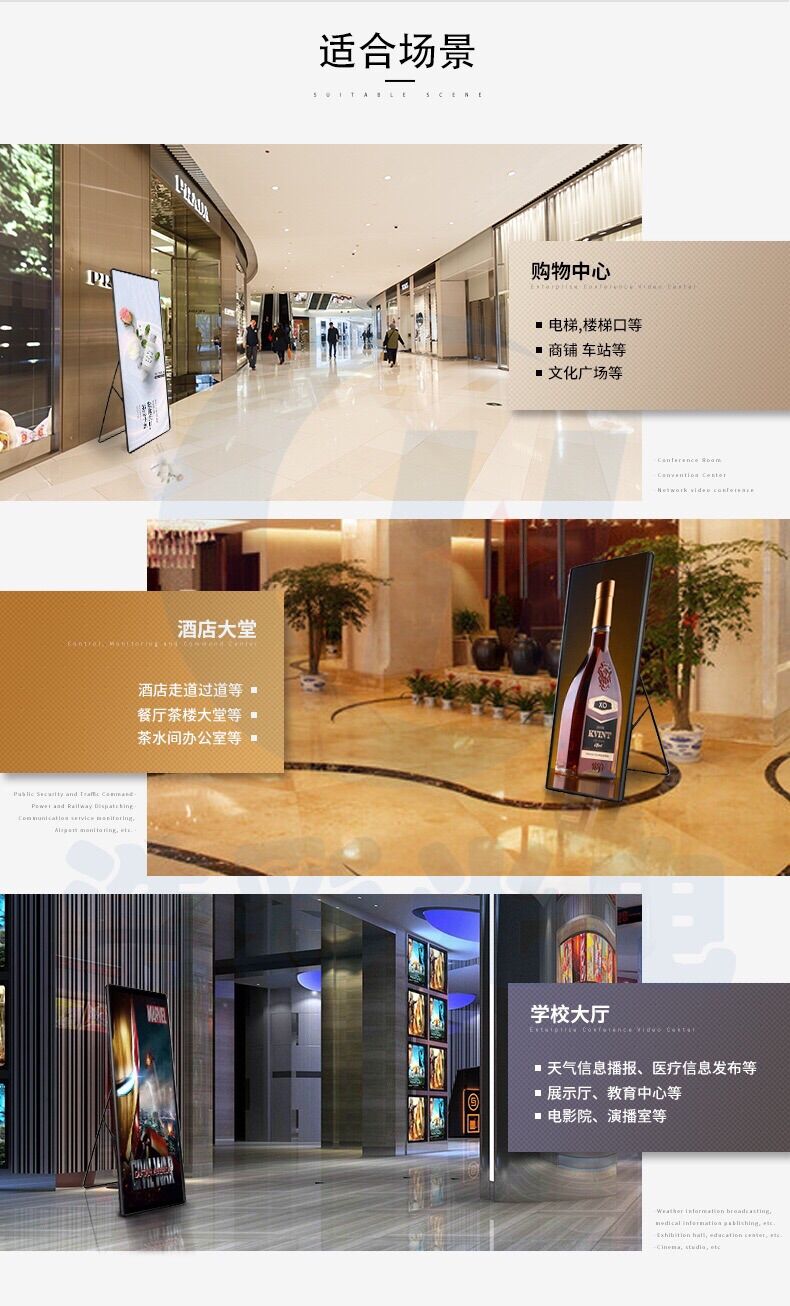

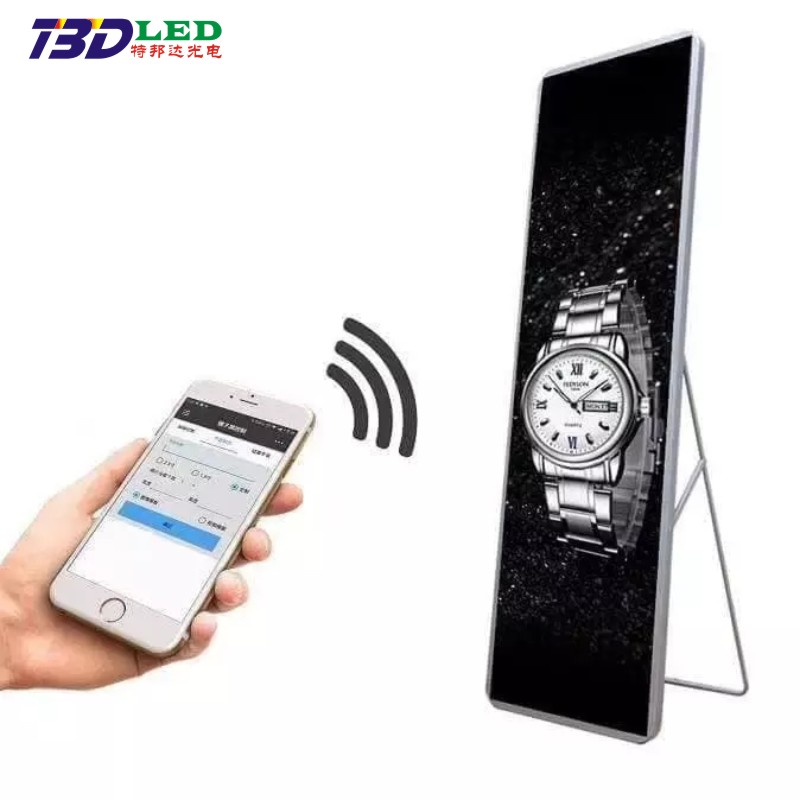

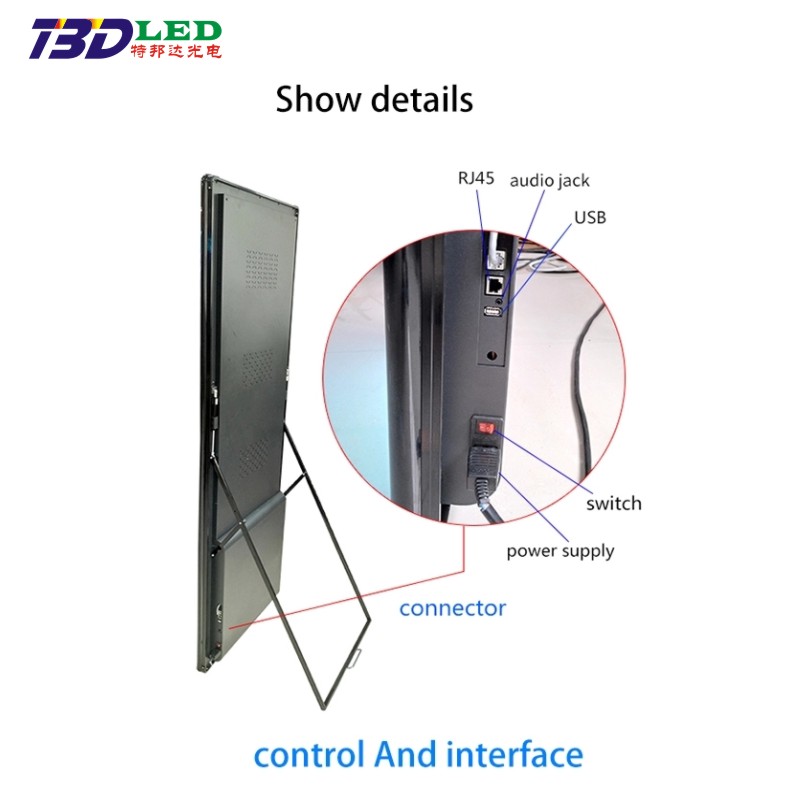

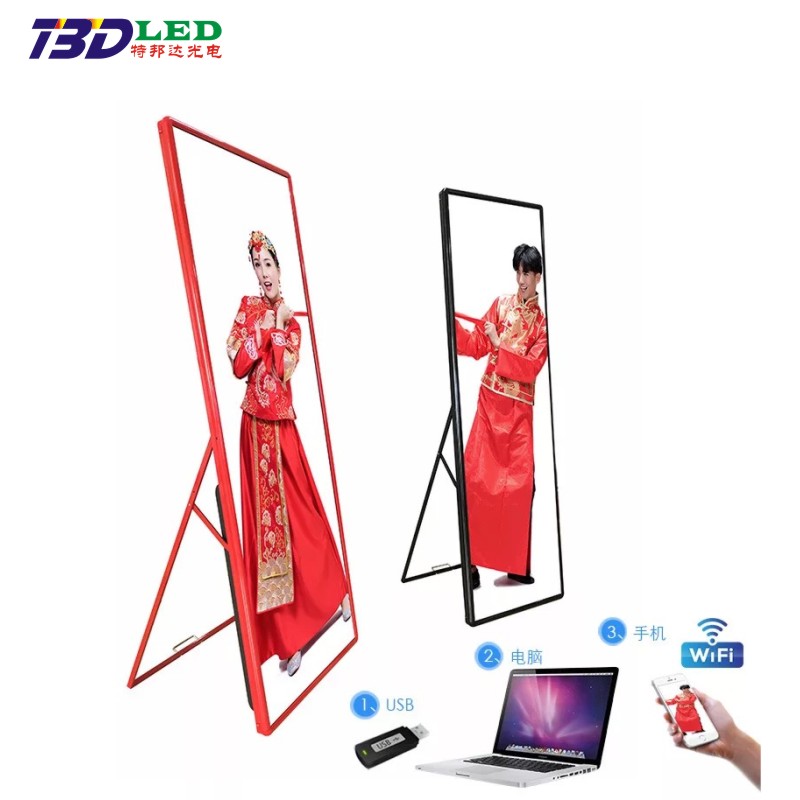

New arrival P2.5 Poster (1897mmX570mmX33mm). (Floor standing, on the wall, into the wall, Hanging are all achievable,Easy Control by USB, WIFI, 4G, APP, HDMI Ultra Light & Thin , Interchangeable modules Airport, high-speed rail station, subway station, hotel,bank, hospital, shopping mall, etc)
